ID # 19810678

New Holland T3F COMPACT SPECIALTY

Call for Price
Overview

COMPACT, STREAMLINED DESIGN

With a narrow frame and a low, overall height of only 54 inches to the top of the steering wheel, T3F tractors navigate easily in between precious crops as well as under low branches and overhangs.

POWERFUL VERSATILTY

T3F tractors are ideal for powering rotary cutters and small sprayers in large operations. They are also a prime choice for small orchards, hop yards, vineyards, nut groves, blueberry farms, poultry houses and any operation where you need a compact utility tractor.

HEAVY-DUTY POWER IN AN AGILE PACKAGE

T3F compact specialty tractors pack 40 to 60 PTO horsepower in a heavy-duty, 5,000-pound design without sacrificing maneuverability or agility.

A GREAT VIEW COMES STANDARD

The sloped hood and curved rear fenders provide for excellent all-around visibility from the comfortable straddle deck platform.

A COMPACT, COMFORTABLE, HEAVY-DUTY TRACTOR FOR NARROW ROWS

Few specialty tractors can match the all-round versatility of T3F compact specialty tractors. Their compact, narrow dimensions give you an edge when working in confined spaces, offering excellent performance for spraying, cultivation and more.

New Holland T3F COMPACT SPECIALTY

LOW CLEARANCE, AN EXCELLENT VIEW AND SUPREME VERSATILITY

Their low overall height – 54 inches to the top of the steering wheel – allows you to slip in and out of low clearance areas, and between extremely low branches. The sloped hood fits low over the compact engine to give you outstanding visibility that makes your work easier.New Holland T3F COMPACT SPECIALTY

A LEGACY OF NARROW TRACTOR EXPERTISE

As the world’s leading supplier of narrow tractors, New Holland developed the T3F Series to deliver a slim and compact alternative for narrow rows. New Holland offers four hard-working reliable narrow tractor families – the T3F, T4F and T4V Series wheeled tractors and TK4 Series crawler tractors. Select the one that best suits your needs.New Holland T3F COMPACT SPECIALTY

Specifications
Model
T3f Compact Specialty
Year
2022
Sale Type
New
Manufacturer
New Holland
Engine Type
3-cylinder diesel
PTO Horsepower
40 - 60
engine

RESPONSIVE, FUEL-EFFICIENT POWER

Powered with high-performance, three-cylinder engines from 40 to 60 PTO horsepower, T3F compact specialty tractors easily tackle routine chores in narrow, low-clearance areas. The common rail fuel injection provides optimum fuel economy.New Holland T3F COMPACT SPECIALTY

TORQUE RESPONSE

The turbocharged, intercooled T3F engines feature four valves per cylinder for fast engine responsiveness. High torque rise from 47% to 54% assures you of consistent power at high RPMs.



transmission

RUGGED SIMPLICITY

The simple 12x12 mechanical shuttle transmission features three constant mesh ranges with four synchronized gears in each range to give you a selection of speeds to match the job at hand.New Holland T3F COMPACT SPECIALTY

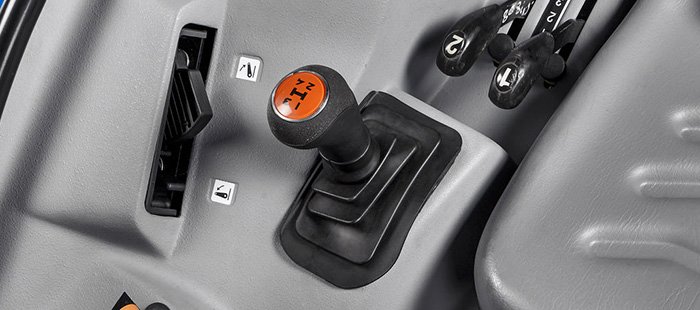

SIMPLE, ERGONOMIC CONTROL

The range lever is mounted on the right side of the steering wheel, and the gear lever is located on the right-hand console for convenient operation.New Holland T3F COMPACT SPECIALTY

EASY CHANGE FROM FORWARD TO REVERSE

The handy shuttle lever located on the left side of the steering column for quick direction changes and smooth maneuvering.New Holland T3F COMPACT SPECIALTY

OPTIONAL CREEPER

A creeper transmission is optional for precise, low-speed applications.



hitch and hydraulics

SUPERIOR HYDRAULIC CAPACITY AND EASE

T3F tractors boast a dual-pump hydraulic system with a total flow of 20.2 gallons per minute (gpm) with a 12.6-gpm implement pump and 7.6-gpm services pump.

New Holland T3F COMPACT SPECIALTY

COLOR-CODED REMOTES

Convenient, color coding allows you to easily identify hydraulic control levers and rear remote outlets. Two remotes are standard with a third optional.New Holland T3F COMPACT SPECIALTY

4,000-LB LIFT CAPACITY

The heavy-duty T3F Series three-point hitch allows you to tackle specialty applications easily with 4,000-pound lift capacity.

EASY, LIFT-O-MATIC™ HITCH CONTROL

Lifting and lowering implements is as easy as flipping a switch thanks to New Holland’s Lift-O-Matic™ hitch lift control.



models and specification
New Holland T3F COMPACT SPECIALTY T3.60F
Engine  54 gross engine hp / 40 PTO hp
Minimum Overall Width
9 ft., 2 in.
57 in (1448 mm) (varies by tire size)
Minimum Height 97 in (2476 mm) to ROPS
New Holland T3F COMPACT SPECIALTY T3.70F
Engine  64 gross engine hp / 50 PTO hp
Minimum Overall Width
9 ft., 2 in.
57 in (1448 mm) (varies by tire size)
Minimum Height 97 in (2476 mm) to ROPS
New Holland T3F COMPACT SPECIALTY T3.80F
Engine  74 gross engine hp / 60 PTO hp
Minimum Overall Width
9 ft., 2 in.
57 in (1448 mm) (varies by tire size)
Minimum Height 97 in (2476 mm) to ROPS
literature
Name Link
Specialty Tractors - Brochure Download
