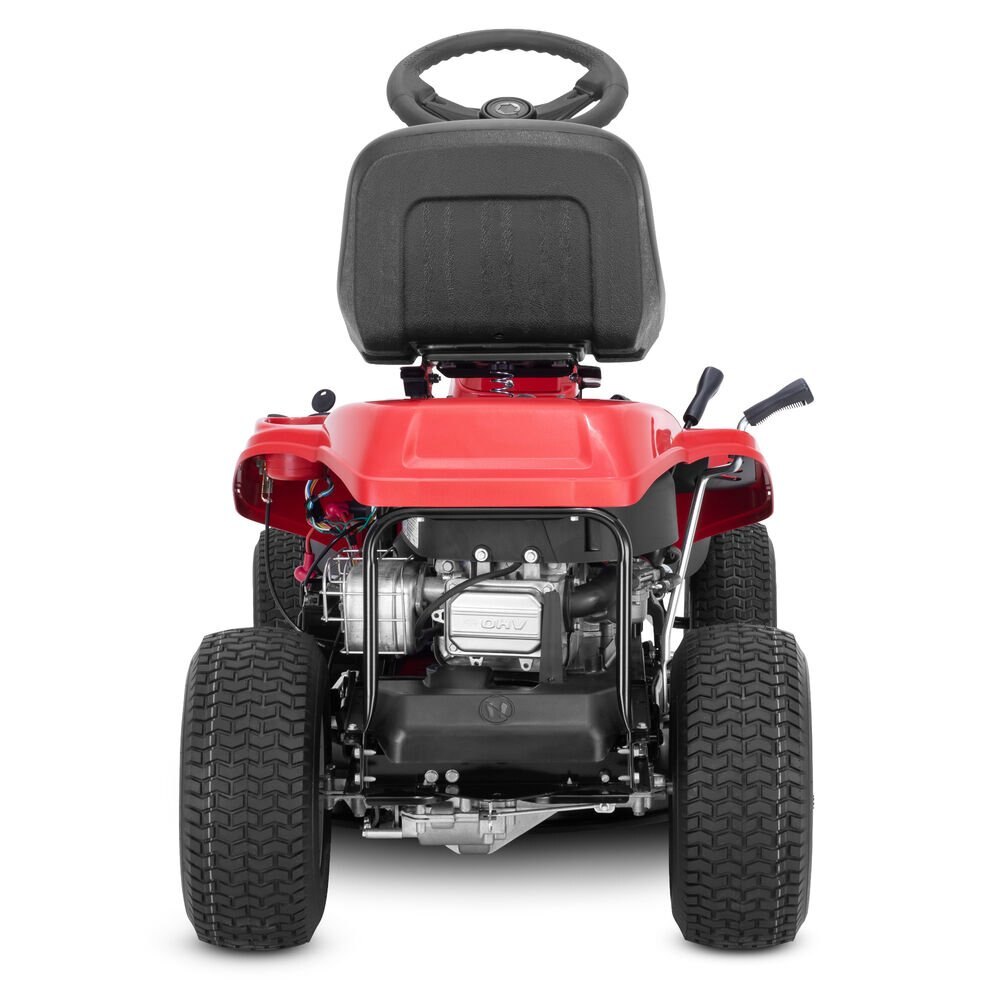

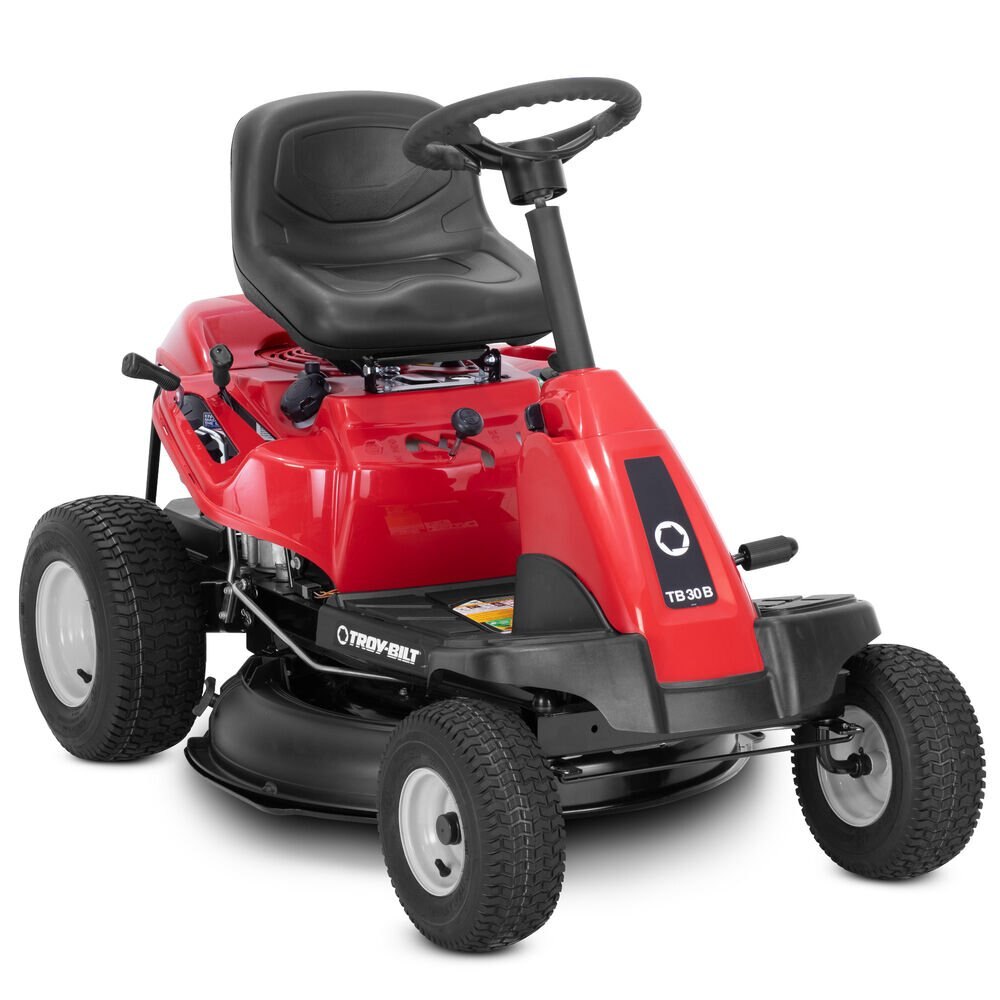

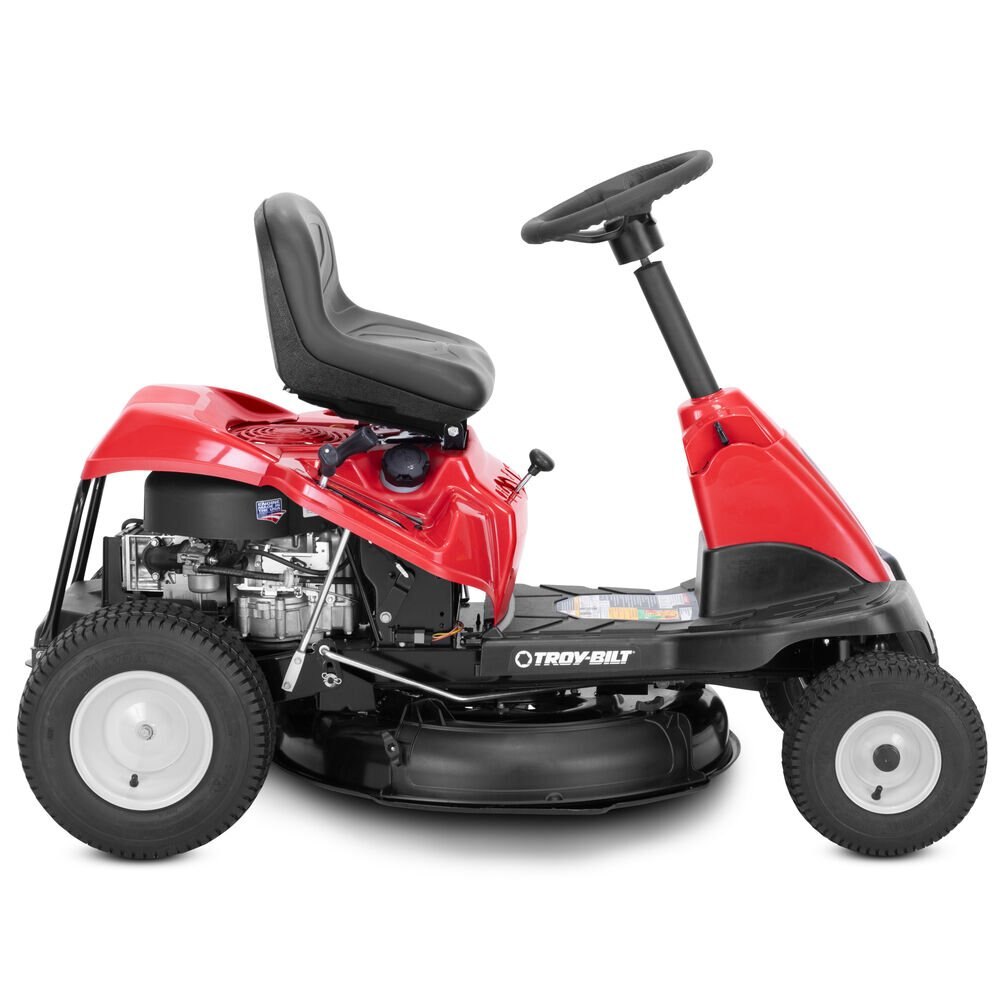

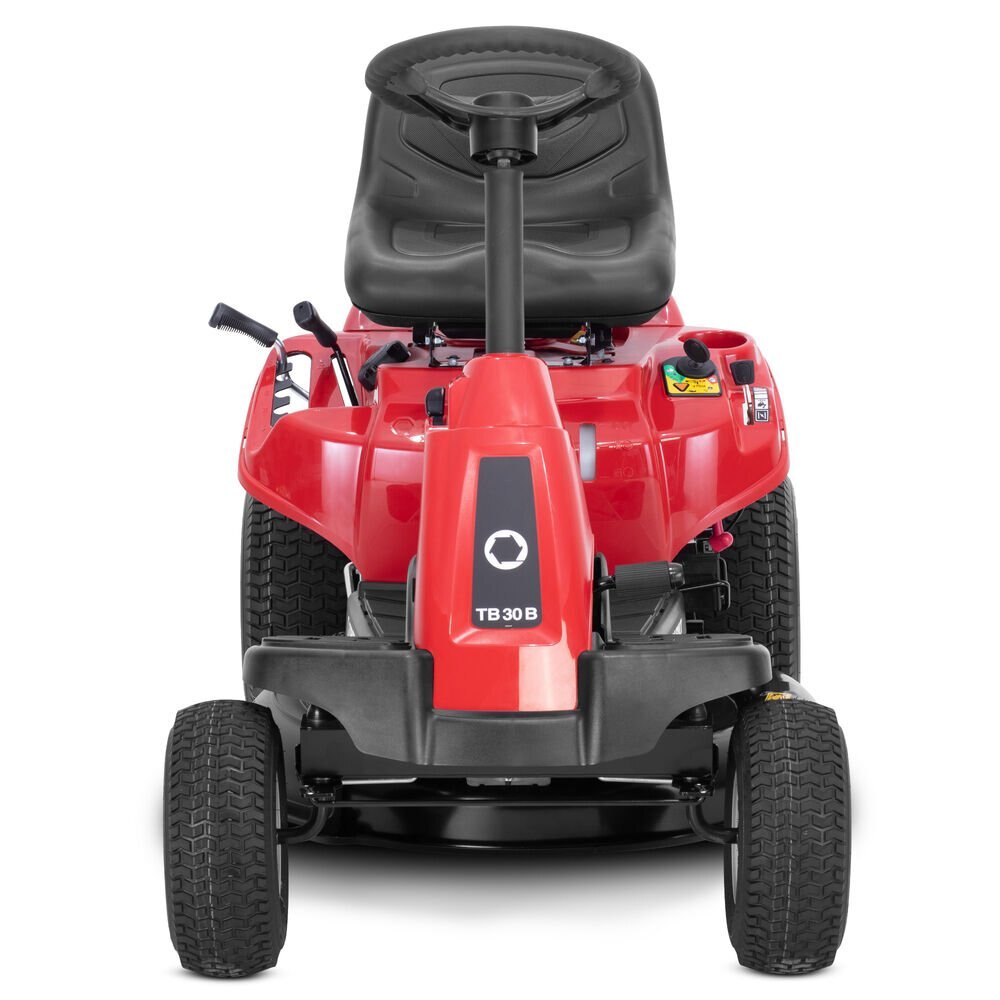

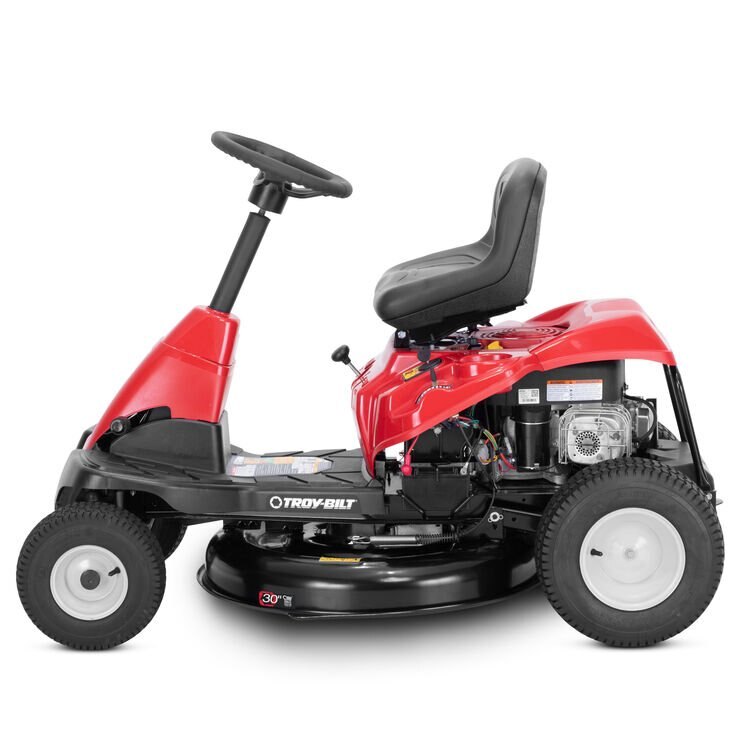

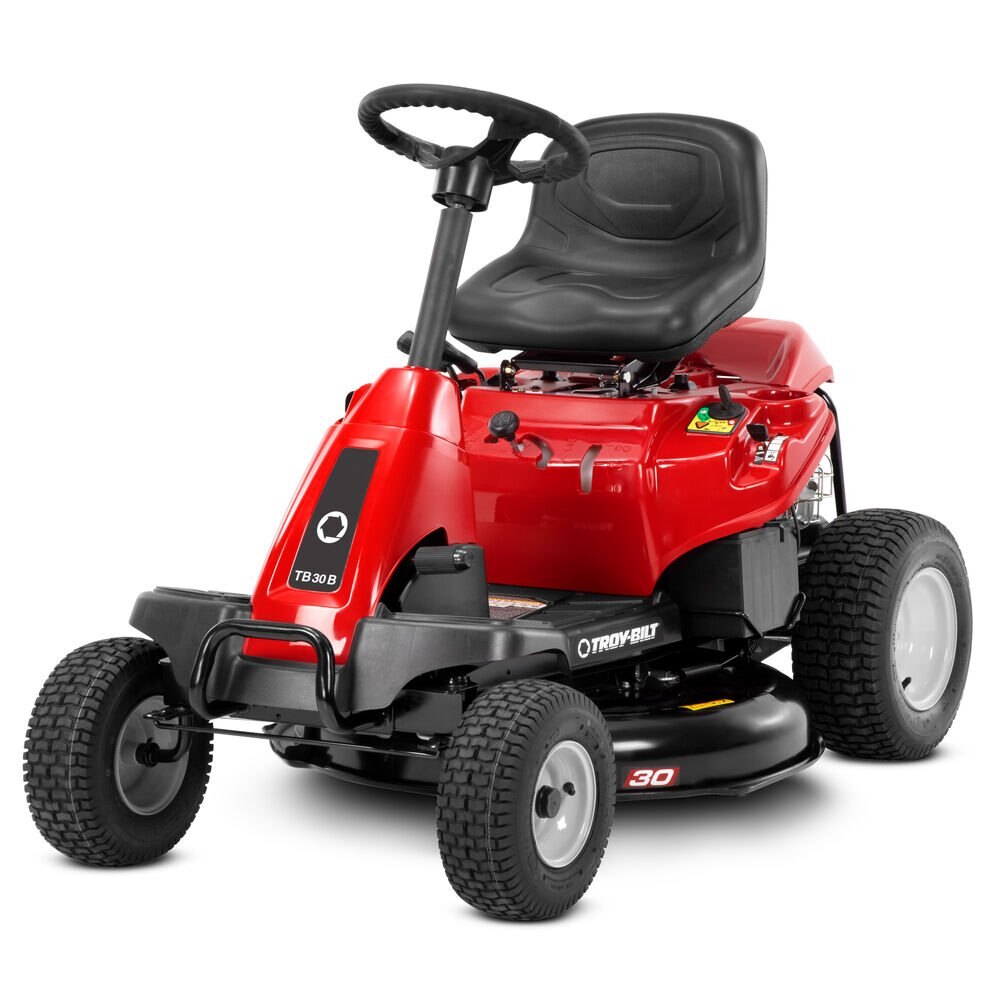

Troy Bilt TB30B Compact Riding Lawn Mower 13AC26JDA23

Call for Price
Overview

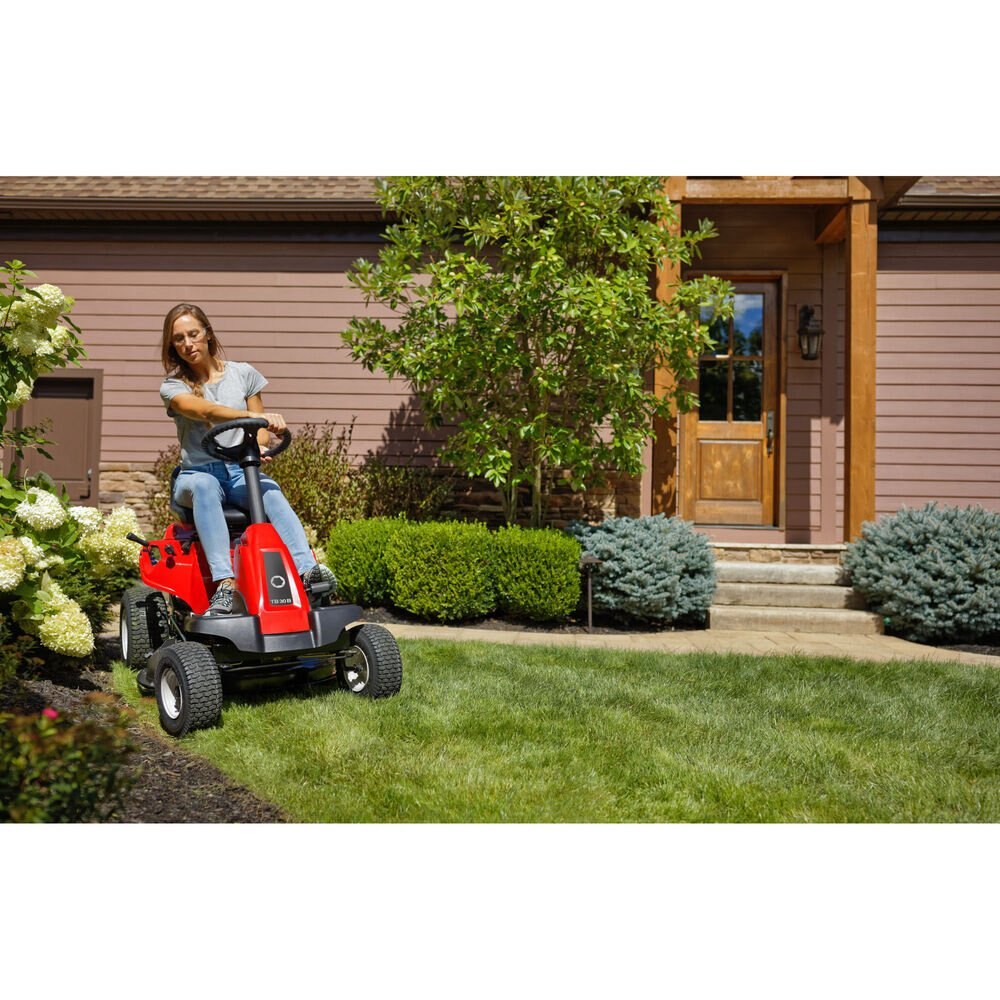

The Troy-Bilt® TB30B riding mower is designed to save storage space. It is perfect for smaller or gated yards, featuring a 30-inch deck that fits through most standard gates. You can easily adjust your mowing speed with its 6-speed, Shift-on-the-Go™ transmission.

  • 10.5 HP*/344cc Briggs & Stratton® engine designed for reliable starting
  • 30" side-discharge steel cutting deck is designed to fit through gates 36" wide or larger and is an ideal choice for small or gated yards up to 1/2 acre.
  • 6-speed Shift On The Go™ transmission has a dash panel control that is easy to see and adjust

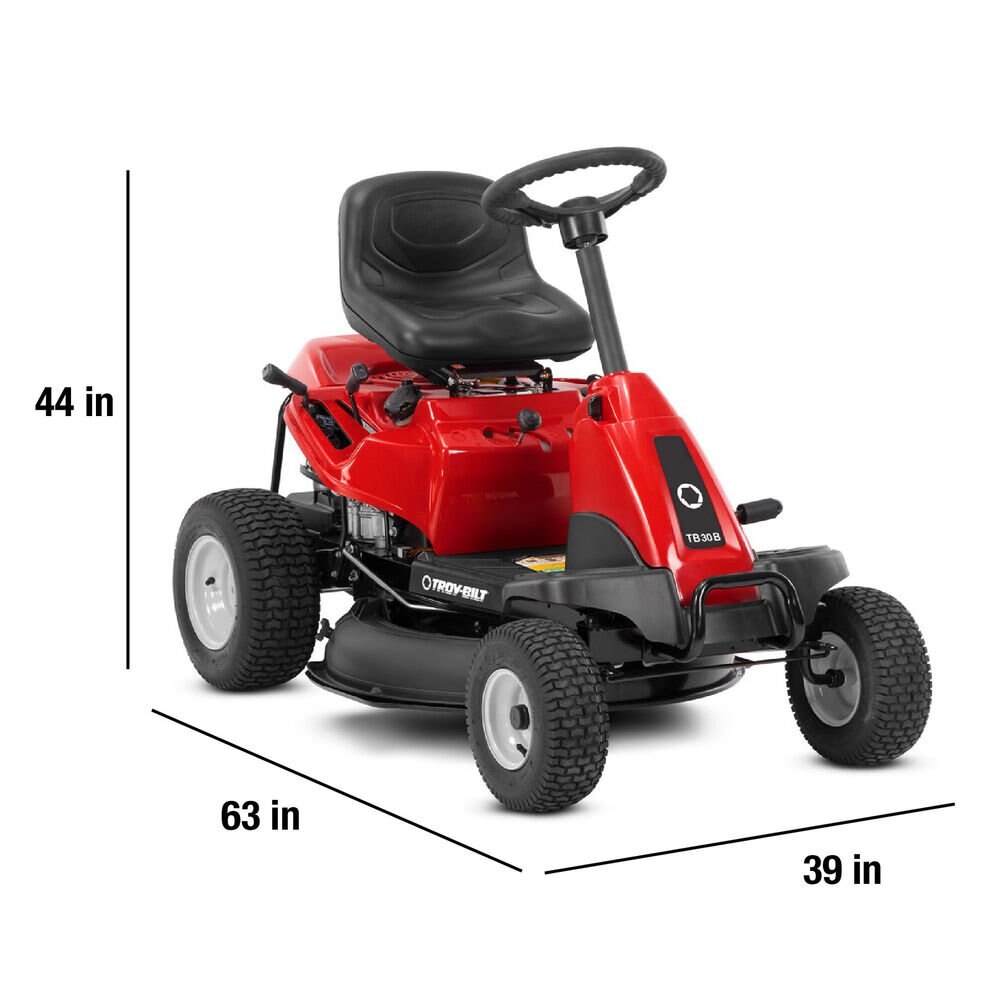

  • Space-saving design makes the TB30B riding mower easy to store in garages and sheds
  • Help keep your lawn healthy and return nutrients into the soil by using the included mulch plug and help avoid thatch
Specifications
Model
13AC26JDA23
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Troy Bilt
Mulch Kit
Included
tb30b compact riding lawn mower features

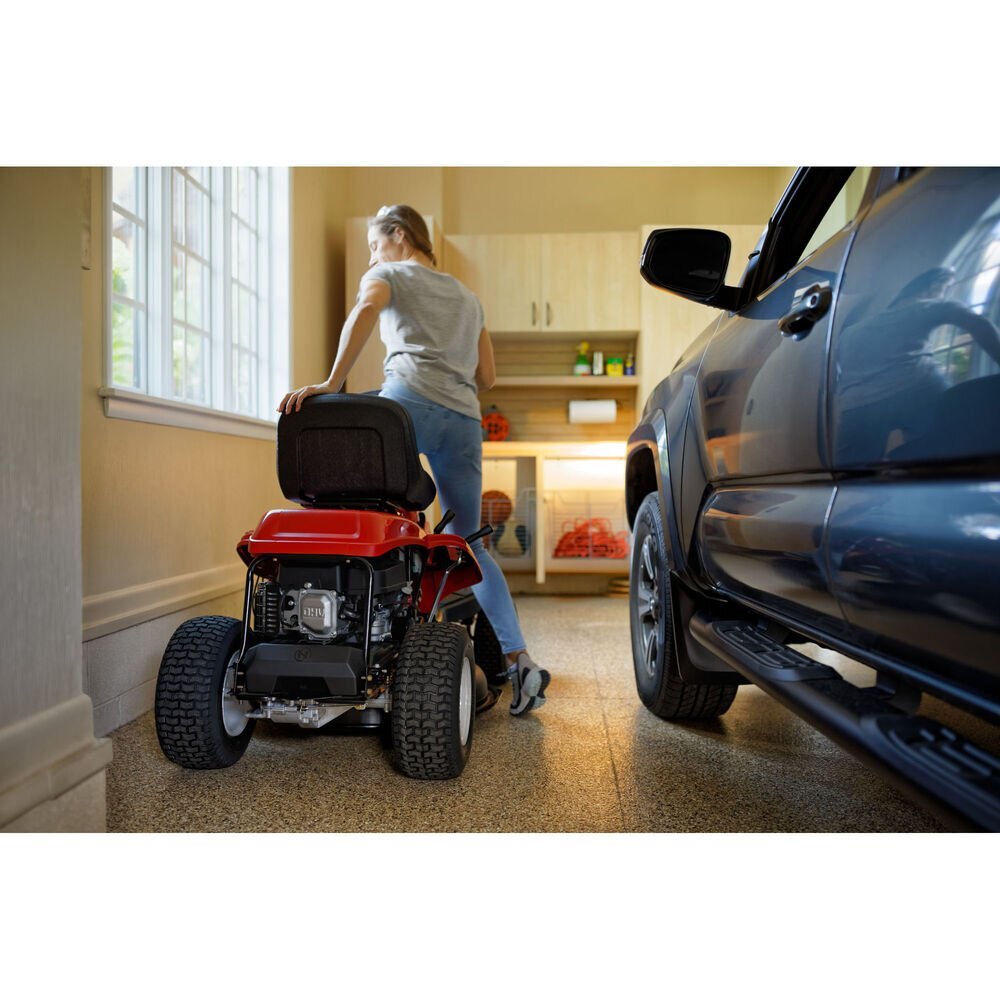

Troy Bilt TB30B Compact Riding Lawn Mower 13AC26JDA23Easy Storage

Space-saving design makes the riding mower easy to store in garages and sheds

Troy Bilt TB30B Compact Riding Lawn Mower 13AC26JDA23Confidence

Backed with a 2-year limited warranty for peace of mind

Troy Bilt TB30B Compact Riding Lawn Mower 13AC26JDA23Pride

Headquarted in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona



engine
Governor
Mechanical
Cylinders
Single
Air Filter
Dual element
Lubrication
Fully pressurized
Engine Brand
Briggs & Stratton®
Engine Model
Power Built
Engine Start
Ignition Key
Starter Type
Electric
Engine Output
10.5HP
Fuel Delivery
Carburetor
Charging System
3 amp regulated
Fuel Tank Capacity
1.3 gal. US (4.92 L )
Engine Displacement
344cc
Engine Model Number
21R707-0152
Engine Oil Capacity
1.5 qt. US (1.42 L)
battery
Battery
150 CCA
Battery Type
Lead Acid
Battery Voltage
12V
drive system
Drive System
CVT
Transmission
Troy-Bilt
Forward Speed
4.25 MPH / 6.7 km/h
Reverse Speed
2 MPH / 3.2 km/h
Transmission Control
6-Speed Hand Lever
Transmission Housing
Aluminum
cutting deck
Deck Lift
Hand lever
Deck Material
14-gauge steel
Deck Positions
5
Deck Construction
Stamped
Deck Cutting Width
30 in
Cutting Height Range
1.5" - 4"
Deck Engagement (PTO)
Manual
chassis
Frame
Robotically welded
Rear Tow Hitch
Turning Radius
18"
Front Pivot Bar
14-gauge steel
Corrosion Protection
controls
Brakes
Disc
comfort
Seat Type
Mid-back
Floor Mats
Intergral
Seat Adjustment
Knob
wheels
Rear Tires
16"x 6.5"-8"
Tire Tread
Turf Saver
Front Tires
13"x 5"-6"
Bearing Type
Poly Bushing
