New Holland Air Hoe Drills P2060

BIG IN THE FIELD, COMPACT IN TRANSPORT

MULTIPLE CONFIGURATIONS FOR ADDED FLEXIBILITY

OPENERS TO MATCH CONDITIONS

A wide array of Stealth™ openers for single-shoot, double-shoot, side-band, and paired row options are available for the P2050 and P2060 air hoe drills to let you place seed and fertilizer precisely where you choose.

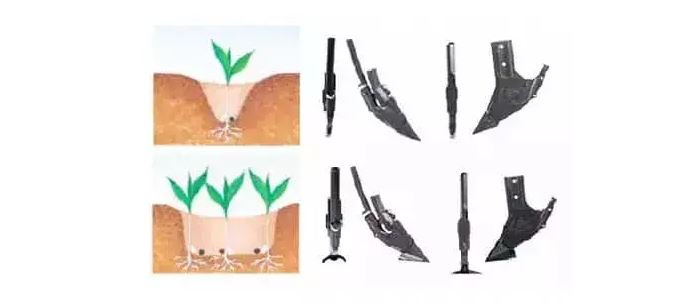

SINGLE-SHOOT

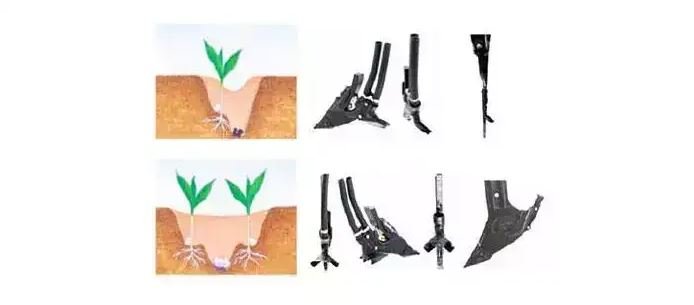

DOUBLE-SHOOT

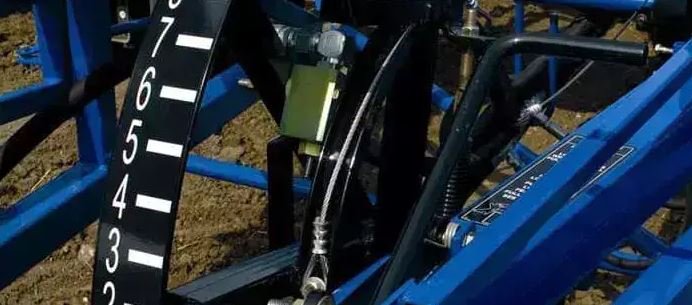

PRECISE SINGLE-POINT DEPTH CONTROL

Single-point depth setting located on the front of the air drill hitch provides simple, exact, repeatable seed depth control across the entire width of the machine. This adjustment allows the operator to quickly and conveniently set precise seeding depths to match a wide range of crop, soil, and moisture conditions.

SUPERIOR GROUND FOLLOWING

The P2060 model includes a flexible frame non-slab that allows each wing and press wheel to follow the contours of the ground independently. The superior ground following capabilities enhances seed placement and accuracy. This flexible design also minimizes frame stress for more durability than traditional welded joints.

CONSISTENT SEED AND FERTILIZER PLACEMENT

Left to right, the P2060 features five independent frame sections. A patented two-paired-rank frame design delivers precise depth accuracy from the front to the rear of the machine. The front two ranks follow the terrain at a depth set by the nearby caster assemblies, and the rear two ranks follow the ground on which the press wheels run. In addition, all tires and packer gangs provide equal weight distribution across the entire width of the drill.

PATENTED ADJUSTABLE PACKING SYSTEM

The exclusive variable packing pressure system raises the bar and allows the operator to tailor packing pressure from field to field for greater efficiency. This versatility allows for accurate fine-tuning in variable soil moisture conditions and for small-seeded crops such as canola.

CUSTOMIZED OPENERS AND CLOSING OPTIONS

A wide array of Stealth™ openers for single-shoot, double-shoot, side-band and paired rows let you place seed and fertilizer precisely where you choose. Customized soil closing options include single-bar, heavy harrow or disc levelers.

WIDE CHOICE OF PACKER WHEEL OPTIONS

Multiple packing choices include gang-style press wheels in semi-pneumatic, steel or walking beam pneumatic.

SEMI-PNEUMATIC PRESS WHEELS

Rubber press wheels flex to shed soil build-up in heavy, sticky soil conditions. The flatter profile rides over a wider area for less packing pressure—just right for soils where too much packing can be a problem or to accomplish a smoother finish. 3 in. (76.2 mm) semi-pneumatic press wheels can be used with knife openers or when spreading seed up to 3 in. (76.2 mm). It also works for narrow double-shoot 4 in. (101.6 mm) rubber press wheels are effective for many applications where seed is spread up to 4 in. (101.6 mm). 5-1/2 in. (139.7 mm) semi-pneumatic press wheels offer on-row packing in wide seed spread applications.

STEEL PRESS WHEELS

Steel press wheels are used in more abrasive sandy and rocky conditions. AV-profile concentrates packing pressure onto a smaller area for higher pressure over the seed. The shape of the furrow also provides protection from wind and water erosion. 3-1/2 in. (88.9 mm) steel press wheels work well with openers that spread seed up to 3-1/2 in. (88.9 mm), or with narrow double-shoot openers. The soil profile is a wide V-shape. 4-1/2 in. (114.3 mm) steel press wheels spread the packing pressure over a wider area for use when spreading seed or for wide double-shoot applications. The soil profile is the flattest of the steel wheels.

PNEUMATIC PRESS WHEELS

The walking beam, pneumatic wheel packing option is available only on the P2060. The pneumatic tire pressure can be adjusted which provides additional flexibility to accommodate various soil and moisture conditions. The two tire style options available are 5.9 in. (149.9 mm) round face or 6.5 in. (165.1 mm) flat face depending on the type of soil and field finish desired.
